IVI Example Design

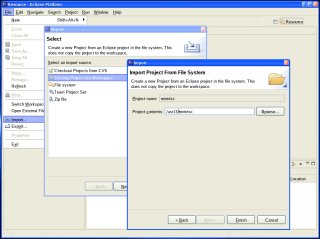

Opening the Example Project

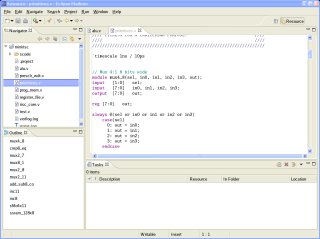

Viewing and Editing Files

Files may be viewed, and edited if desired.

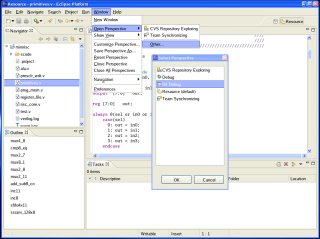

Opening Simulation Perspective

Eclipse organizes views into 'perspectives'. Open the 'IVI Simulation' perspective. This perspective shows the design structure, simulation output, and traced signals.

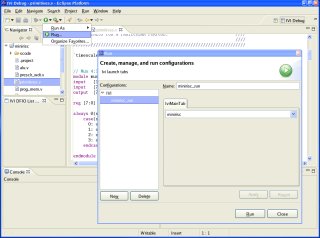

Prepare for Simulation

Before the design can be simulated, a launch configuration must be created. The drop-down selects which design is run.

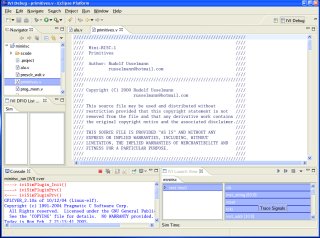

Run Simulation and Trace Signals

Run simulation by clicking the 'Run' button. Trace signals by selecting signals in the design structure, then use the context menu. The traced signals will appear in the "IVI DFIO List" view.

Run and stop simulation using the 'play' and 'stop' icons on the IVI launch view toolbar.

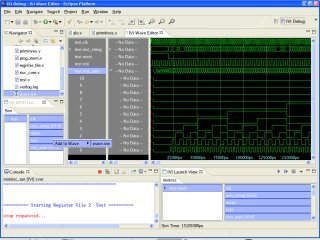

View Waveforms
